Amano Cincinnati AGP-1700 Series

With the optional lighted top, this gate really stands out

Amano Cincinnati’s AGP-1700 Series is designed to meet all your parking control needs. The microprocessor-based logic and functionality provides the ultimate in reliability, performance and safety, as well as the flexibility to accommodate four different modes of operation.


  • Large, cabinet-style design
  • Four selectable modes of operation
  • Versatile footprint for easy replacement of other gates
  • Pre-installed detector harness
  • Access door can be located on any side of pedestal
  • Microprocessor-based logic and functionality
  • Standard “extra sensory” safety feature
  • Instant reversing motor
  • Heavy-duty polyethylene cover will not crack or peel
  • 1/3 horsepower motor with sealed gear reducer
  • Internal thermal/overload protection
  • Thermostat-controlled heater
  • 12’ standard or lighted gate arm, and 11’ standard folding gate arm configurations available.

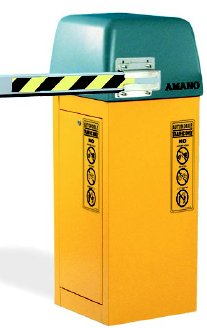

Amano Cincinnati AGP-1700 Series Parking Gate

Amano Cincinnati AGP-1700 Series

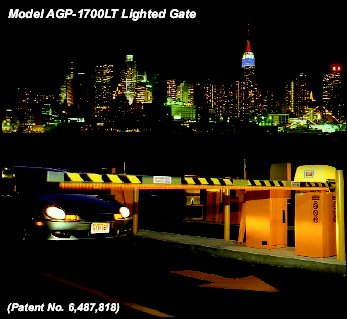

AGP-1700 Lighted Gate option

Designed to provide exceptional visibility, particularly between dusk and dawn, the lighted parking gate represents the latest in industry technology (U.S. Patent No. 6,487,818).

Features: Lighted Gate

  • Provides exceptional visibility between dusk and dawn.
  • Both hood and gate arm are lighted for enhanced visibility and pedestrian safety
  • Translucent lighted hood cover (may accommodate user logo)
  • Flashing, lighted gate arm Large, cabinet-style, vandal-resistant design
  • Pre-installed detector harness
  • Internal thermal/overload protection
  • Thermostat-controlled heater


  • May be retrofitted to existing AGP-1700 gates
  • Versatile applicability
  • Enhanced visibility
  • Increased pedestrian safety
  • Rugged, long-life, all-weather construction
  • High-operational reliability

mano Cincinnati AGP-1700 Series Lighted Option

Amano Cincinnati AGP-1700 Series Lighted


Technical Specifications

  • 120V AC, 60 Hz
    220/240V AC, 50/60 Hz
    100V AC, 50/60 Hz
  • Service amps: 19.6A (120V) Lighted gate: 20A (100V 120V), 10A (240V)
  • Connections: Four utility power outlets
  • DIN rail terminal blocks including logic and main power breakers
  • Field wiring: Removable terminal block assembly
    Dry contact input, output 12V DC unregulated
  • Quick, plug-in installation
  • Gate up/normal/down switch (internal manual override)
  • Operation modes:
    • One way pay
    • Free direction with backaway
    • Bi-directional lane
    • Input/output lane controller
  • Switch selectable features:
    • Extra sensory timer
    • Closing loop safety “auto stop”
    • Backout timer
  • Built-in detector harness will accept single channel (AGP-0134) or dual channel (AGP-0234) vehicle detectors
  • Temperature: -15°F ~130°F (-26°C ~ 54°C)
  • Automatic thermostat-controlled heater included
  • Humidity: 10% ~ 90% (non-condensing)

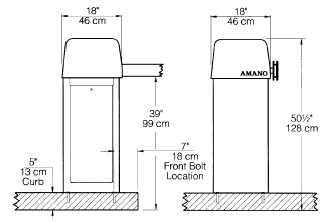

Amano AGP-1700 Series: Layout Dimensions

Amano AGP-1700 Series:
Layout Dimensions

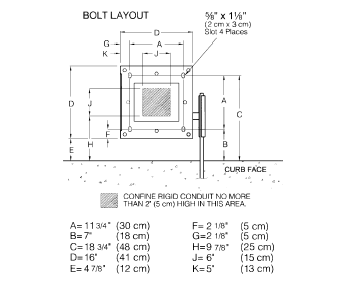

Amano AGP-1700 Series: Bolt Layout

Amano AGP-1700 Series:
Bolt Layout

  • Horsepower: 1/3 (lighted gate 1hp) single-phase instantly reversing motor
  • Speed: 1625 RPM
  • Starting amps: 10A (120V) maximum
  • Running amps: 4.5A (120V)
  • Heavy-duty V-belt to drive speed reducer
  • Internal thermal/overload protection
  • Height: 34 in (86 cm) in DOWN position
  • Length:
    A10: 10’ (304 cm) - wood
    AL12: 12’ (365 cm) (used with lighted gate arm) - aluminum
    AL20: 11’ (323 cm) folding gate arm - aluminum
  • Illumination kit: Available for AL12 gate arm (AGP-0515/A623)
  • Heavy-duty, 14-gauge all-weather steel construction with high-density polyethylene cover (aluminum cover optional)
  • Direct replacement footprint for other brand gates
  • Dimensions: 45 1/2” H x 18 W x 18” D (116 cm x 46 cm x 46 cm)
  • Weight: 166 lbs. (75 kg)
  • Access:
    Removable cover on drive mechanism (360° access)
    Removable door (access to electrical connections and control box)
    Finish (Std): Yellow (RAL #1028); White (RAL #9010)

Specifications are approximate and are subject to change without notice.


Manufactured by Amano Cincinnati, Inc.'s Ohio factory, an ISO 9001:2000 registered facility.
