Amano CP-3000 Series

Will Not Overprint Time Card Punches


Heavy-duty. This popular electronic recorder takes the time card from employee's hand, eliminating costly over-punching. Clean, accurate punches cut payroll processing time in half.


Amano Cincinnati's CP-3000 Series Electronic Time Recorder is designed as a fully automatic time recorder which eliminates overprinting through the use of its mark sensing technology. Its optical sensor detects the previous print mark, so that time and dates are consecutively printed vertically up the time card, making overprinting impossible. The unit offers an automatic perpetual calendar and includes an automatic Daylight Savings Time adjustment. The system uses high speed dot matrix printing with programmable formats, and comes equipped with a full power battery backup for full operation during AC power failures. Also provided is an adjustable card pocket opening for printing on most popular time cards. The unit is a fully functional electronic time recorder and offers up to 80 weekly program steps that you can use to activate specific features of the unit.


  • Displays date, time, and day of the week
  • Programmable imprint format: 2-digit year, month, day, date, hour (AM/PM or 0-23), minutes
  • High-speed dot matrix printing
  • Automatic Daylight Saving Time adjustment
  • 80 weekly program steps to activate specific features
  • Full power reserve
  • Automatic card feed
  • Fully automatic
  • Adjustable card pocket accommodates most time cards
  • Staggered imprint from day-to-day

Optional Features

  • Two-color printing (black and red)
  • Signal-relay kit

Amano CP-3000 Series

Amano CP-3000



  • Accurate time recording reduces error and employee time theft
  • Eliminates overprinting through unique mark-sensing technology
  • Full operation during power loss

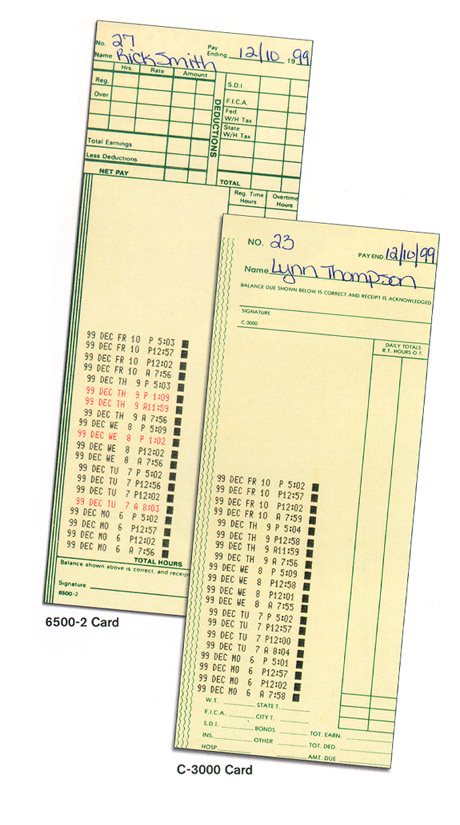

Sample Time Cards for Amano CP-3000

  • 6500-2 and C3000 time cards shown:

Amano CP-3000 Sample Time Cards

Technical Specifications

Power requirements: 120VAC +10%, 50/60Hz
Power consumption: Normal 3W, maximum 6W
Ambient temperature: 14 °F to 113 °F (-10 °C to 45 °C)
Relative humidity: 10-90% (non-condensing)
Dimensions: 12.3 in x 10.2 in x 6.1 in (313 x 258 x 155 mm)
Weight: 9.66 lbs. (4.38 kg)
Power reserve: Built-in battery (fully charged) will maintain normal operations for 72 hours or 300 punches
Environment: Indoor use only, dust free, not in direct sunlight
Time card: 2.56 - 4.35 in (65 - 108mm)
